Rossway Safety in Design


The Australian Government National Occupational Health and Safety Commission, public discussion paper “Prevention of Falls – August 2005” noted that…” Design related issues were definitely or probably involved in at least half of the accidents in the construction Industry”.

This is an amazing observation which would lead us to conclude that if we can adjust the design to accommodate the safety issues that it presents in the construction process, then we could significantly affect the risk associated with the construction process, in fact at least 50% of the risks.

The WHS regulations came into force in January 2012 and are supported by codes of Practice with the Code of Practice, Safe Design of Structures coming into force in May 2012.

Rossway Safety Systems can assist designers in this process, by in the first instance identifying the safety issues, specifically relating to roofwork. Once these risks are identified we can advise on how to eliminate or reduce them by specifying safer products and installation techniques.

Click here to contact Rossway Safety Systems for a Seminar presentation.



Rossway Safety Systems will provide safety Seminars to various organisations on a generic or project specific basis.

Duties of the Designer

There are many parties who undertake the role of a “Designer” as identified in Code of Practice, Safe Design of Structures for instance a cost consultant may take the role of designer where he may select a product on financial grounds, but in this regard he must consider the safety implication. Inevitably the financial implications of any design decision are an important factor and the code does not state that decisions are to be made irrespective of cost, but it does state that there is a duty to specify systems and products that are “reasonably practical” to eliminate or minimise risk. So if a product or system is safer than an alternative, then the designer would be obliged to select that system provided the price differential (if any) was not so significant to render the project unviable.

The design team to properly discharge their duties must consider the risks that their design imposes on the construction process. In order to do this they will need to engage with the specialists in the construction process at design stage. In this way any risks can be identifies, where possible eliminated, if not possible to eliminate them, then reduce them. The designer will then have a design that is safe and he can specify a safe product and a safe system of work.

One of the main issues that have been identified is the failure to recognise safety deficiencies in a design at an early stage. Many safety deficiencies in the design of construction projects are not recognised until the construction phase, when the works are underway. This leads to problems where the design is too far advanced to accommodate alterations to the design. The Safe design of Structures code of practice imposes duties on Designers to specify products with due regard to safety, but also to specify safe systems of work for the installation of these products.



Designers duties to other designers in the design process

The design process in any construction project is complex and involves input from many parties. Where more than one person has a duty for the same matter, each person retains responsibility for their duty and must discharge it to the extent to which that person has capacity to influence the matter.

So if a client were to propose a specification for, say a roof installation, which involved installing components that involved high risk and there was an alternative specification, that was “reasonably practicable” to adopt, then members of the design team would be under an obligation to highlight this with a view to ensuring the safer design solution were adopted.

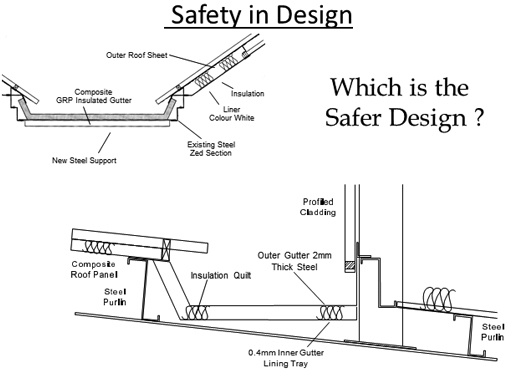

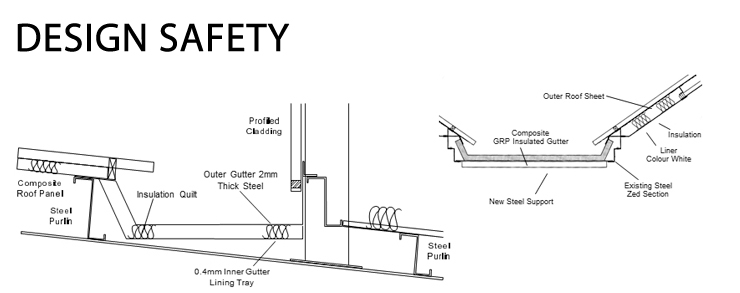

What is the safer Design?



There are some products that are inherently safer to install than others. For instance for roof products that have components that are fragile, whereby a person could fall through them during the installation process, should not be selected if alternative products that are not fragile could be selected. Furthermore there are many roof systems that “non fragile” when completed, however they may contain products that are fragile during the installation process and the roof system only becomes non fragile when the complet system is installed, therefore the danger is present during the installation process.

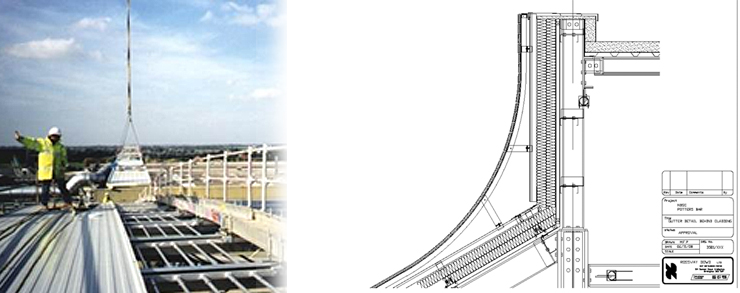

For this reason products that can be provided as composite prefabricated components, for instance composite roof panels would usually be considered lower risk than on site multi layer roof constructions.

When specifying roof systems due regard needs to be taken of the specific installation circumstances, particularly regarding material distribution, for instance  prefabrication may be considered the preferable solution but site layout and logistics may not be able to accommodate the cranes/ lifting equipment.

Checklist for Designers when specifying Roof Constructions





Designers should consider the checklist below and ensure that these are incorporated into the project specification so that all parties in the design process and those involved in the construction process are aware of their duties and obligations.

  • The effect of weather conditions on the installation process. In wind conditions, flexible sheet material may present hazards that more rigid materials may not. Certain criteria has been established whereby all laying and handling of lightweight material such as glassfibre, insulation boards, profiled sheet metal etc should cease when wind speed reaches 17 m.p.h (gusting to 26 mph or over) (source Roofing and Cladding in Windy conditions National Federation of Roofing Contractors UK)
  • Where rain affects the safety of installation then designers must specify whether materials can be installed in those conditions.
  • Where temperature drops to below freezing then designers should specify that work ceases if a hazard is introduced.
  • Due consideration to be given to the product loading which may influence the sequence of construction installation.
  • If a product specification requires less temporary works (access equipment / scaffolding etc.) than another, then the specification requiring less temporary works should be considered preferable.
  • The fragility of the products specified should be considered and fragile components should be avoided. It must be made clear when the specified product is non fragile as this may be at a certain stage in the construction process.
